Cockpit is a free web-based administration tool for the system admin to perform tasks, such as storage management, network configuration, inspecting logs, managing containers, and so on.
Cockpit is released under the LGPL v2.1+, and it is available for Debian, Redhat, CentOS, Fedora, Atomic, Arch Linux, and Ubuntu.
Features
Contents
- Manage multiple Cockpit machines from a single Cockpit session
- Create and manage Docker containers
- Create and manage KVM, oVirt Virtual Machines
- Modify the network settings
- Manage user accounts
- Web-based shell in a terminal
- View system performance in a graph.
- Collect system configuration and diagnostic information with the use of sosreport.
Cockpit comes installed by default in Fedora Server.
Here, we will see how to install Cockpit on CentOS 7 / RHEL 7 & Fedora 28 WS.
Install Cockpit
Cockpit a in CentOS 7 base repository and available in Extras repository on RHEL 7.
Enable Extras repository on RHEL 7.
subscription-manager repos --enable rhel-7-server-extras-rpms
Install the Cockpit package.
### CentOS 7 / RHEL 7 ### yum install -y cockpit cockpit-networkmanager cockpit-dashboard cockpit-storaged cockpit-packagekit ### Fedora ### sudo dnf install -y cockpit
Additional Packages
You can additionally install below packages to manage other tasks using Cockpit.
Package Name | Purpose |
---|---|
cockpit-docker | Managing Docker Containers |
cockpit-kubernetes | Visualizing and Configuring Kubernetes Cluster |
cockpit-machines | Manage KVM Virtual Machines |
cockpit-sosreport | Create diagnostic report with the sosreport tool |
cockpit-selinux | Troubleshoot SELinux Issues |
cockpit-kdump | Configure Kernel Crash Dumps |
cockpit-subscriptions | Manage System subscription |
cockpit-machines-ovirt | Manage oVirt Virtual Machines |
cockpit-pcp | Reading PCP metrics and Loading PCP archives |
Enable the Cockpit service.
### CentOS 7 / RHEL 7 ### systemctl enable --now cockpit.socket ### Fedora ### sudo systemctl enable --now cockpit.socket
Firewall
Add the firewall rules to allow Cockpit to communicate with remote machines as well as to allow us to access Cockpit dashboard from external machines.
### CentOS 7 ### firewall-cmd --permanent --add-service=cockpit firewall-cmd --reload ### RHEL 7 ### sudo firewall-cmd --add-service=cockpit sudo firewall-cmd --add-service=cockpit --permanent ### Fedora ### sudo firewall-cmd --add-service=cockpit sudo firewall-cmd --add-service=cockpit --permanent
Working with Cockpit
Once you start the Cockpit service, you access the Cockpit console by going to below URL using the browser.
https://ip.add.re.ss:9090

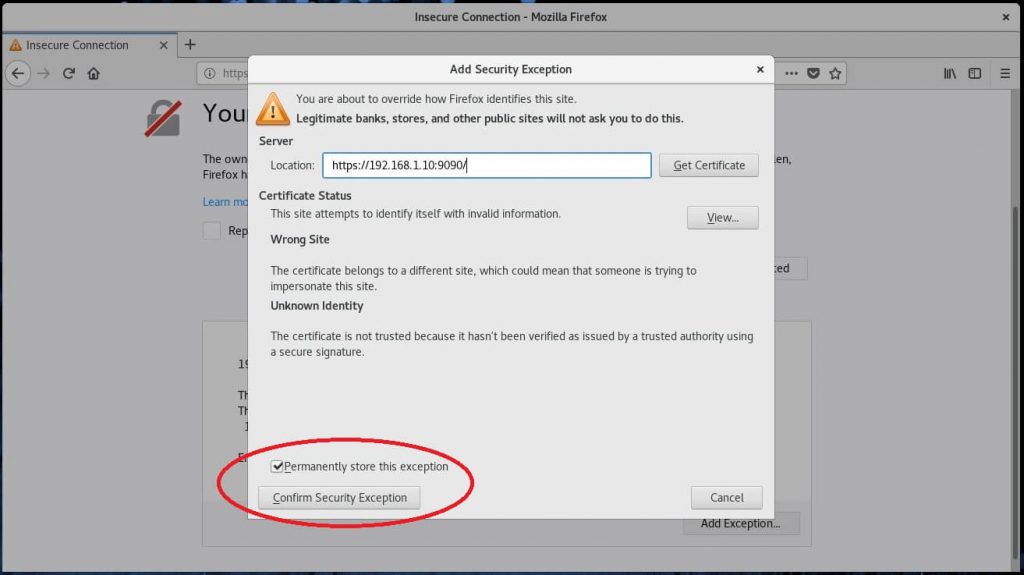

You would need to add a Security Exception in the browser to access the Cockpit for the first time.
![Install Cockpit on CentOS 7 - Add SSL Exception](https://linuxpunx.com/wp-content/uploads/2021/04/how-to-install-cockpit-on-centos-7-rhel-7-fedora-28.jpg)

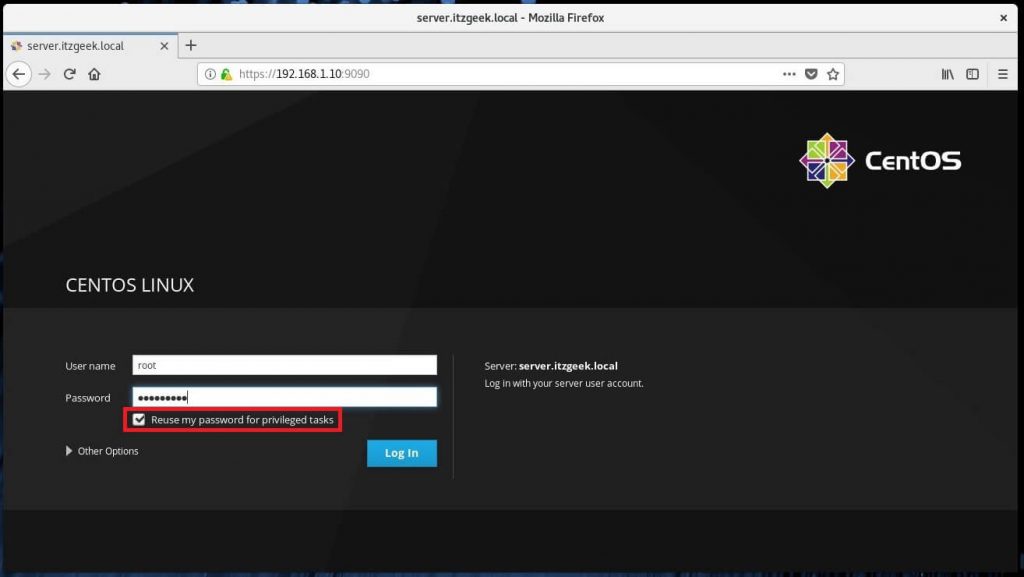

Log in with your local user account. In my case; it is “root”.
![Install Cockpit on CentOS 7 - Cockpit Login Screen](https://linuxpunx.com/wp-content/uploads/2021/04/how-to-install-cockpit-on-centos-7-rhel-7-fedora-28-1.jpg)

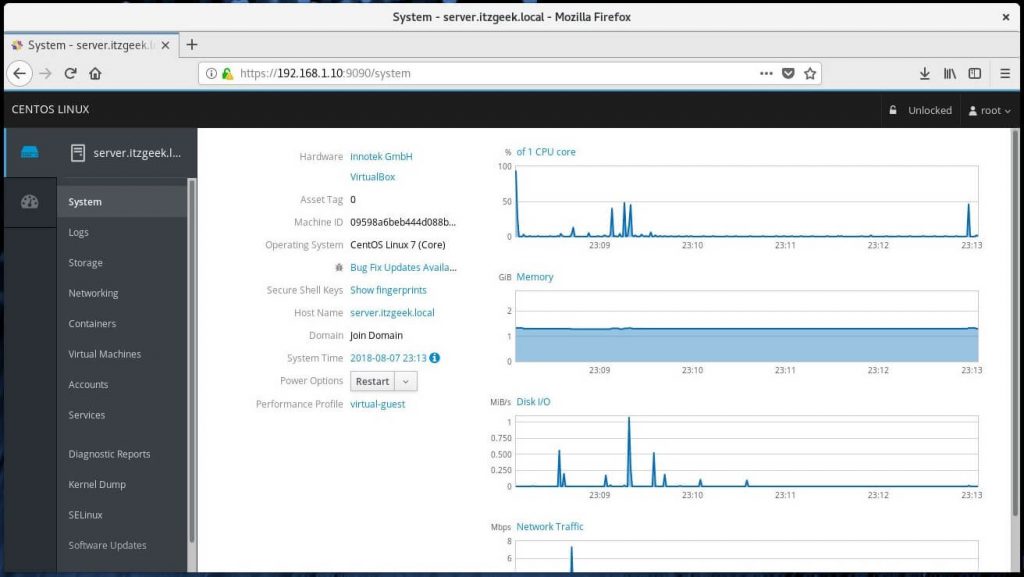

Once you have logged in into Cockpit, it will take you to the System page where you can see a complete overview of the system.
![Install Cockpit on CentOS 7 - Cockpit Dashboard](https://linuxpunx.com/wp-content/uploads/2021/04/how-to-install-cockpit-on-centos-7-rhel-7-fedora-28-2.jpg)

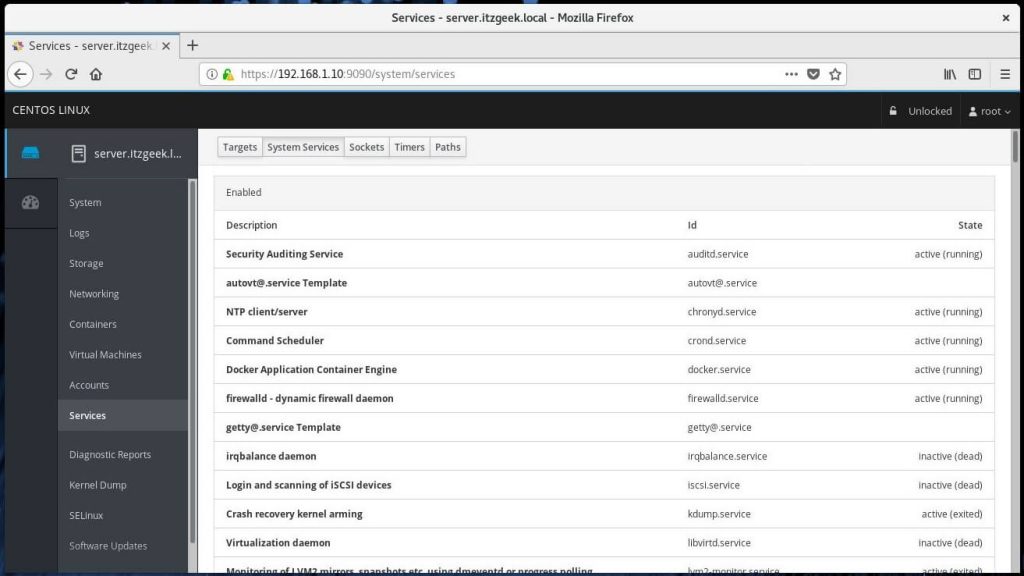

You can see the details of running services by clicking on Services. Here, you can manage (start, stop, restart, etc.) the services by clicking on a particular service.
![Install Cockpit on CentOS 7 - Manage System Service with Cockpit](https://linuxpunx.com/wp-content/uploads/2021/04/how-to-install-cockpit-on-centos-7-rhel-7-fedora-28-3.jpg)

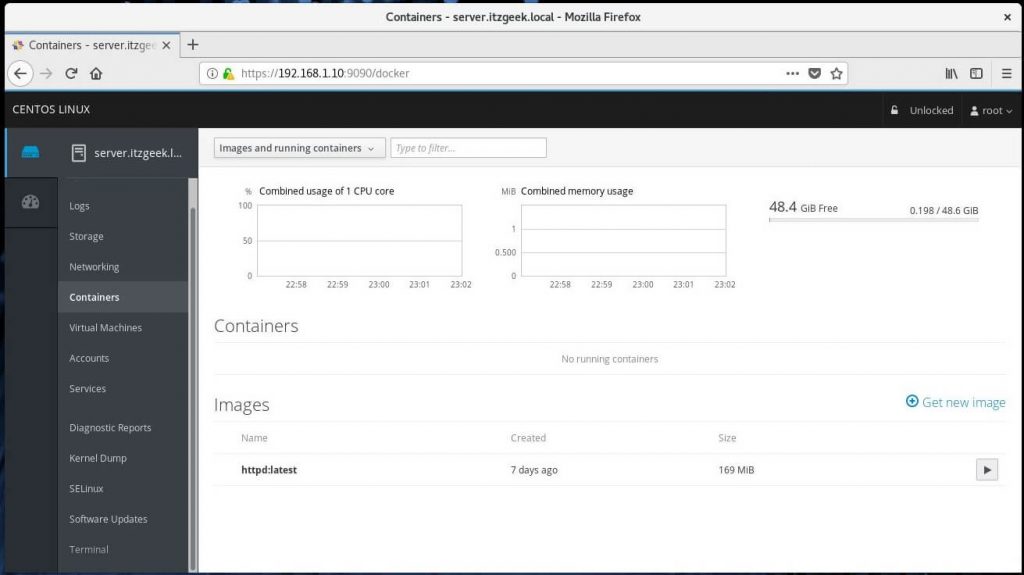

If you would like to manage the Docker containers, you have to go to Containers page. Here, you can run, stop, delete and commit a container.
![Install Cockpit on CentOS 7 - Manage Docker Containers with Cockpit](https://linuxpunx.com/wp-content/uploads/2021/04/how-to-install-cockpit-on-centos-7-rhel-7-fedora-28-4.jpg)

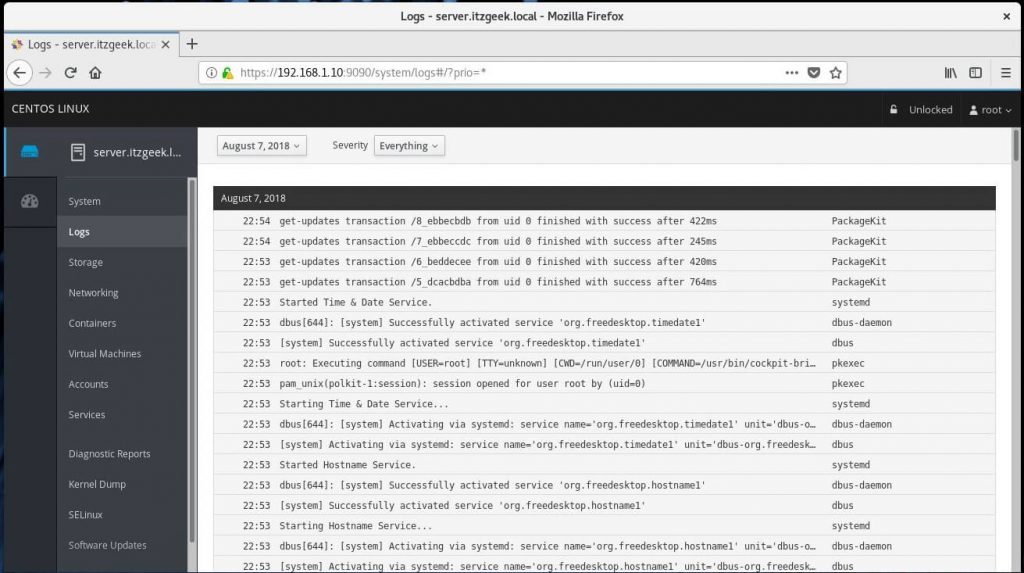

You can troubleshoot your machine by having a look at Logs.
ADVERTISEMENT
![Install Cockpit on CentOS 7 - View System Logs with Cockpit](https://linuxpunx.com/wp-content/uploads/2021/04/how-to-install-cockpit-on-centos-7-rhel-7-fedora-28-5.jpg)
Manage the system users by going to Accounts.
![Install Cockpit on CentOS 7 - User Management with Cockpit](https://linuxpunx.com/wp-content/uploads/2021/04/how-to-install-cockpit-on-centos-7-rhel-7-fedora-28-6.jpg)

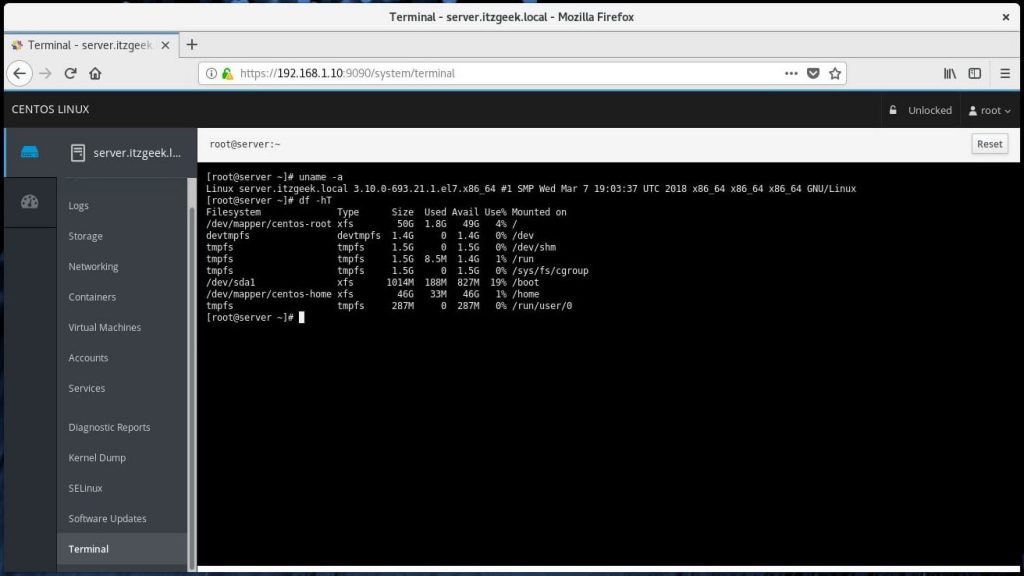

You can also take the terminal of the server by clicking on the Terminal.
![Install Cockpit on CentOS 7 - Access Machine with Remote Shell using Cockpit](https://linuxpunx.com/wp-content/uploads/2021/04/how-to-install-cockpit-on-centos-7-rhel-7-fedora-28-7.jpg)

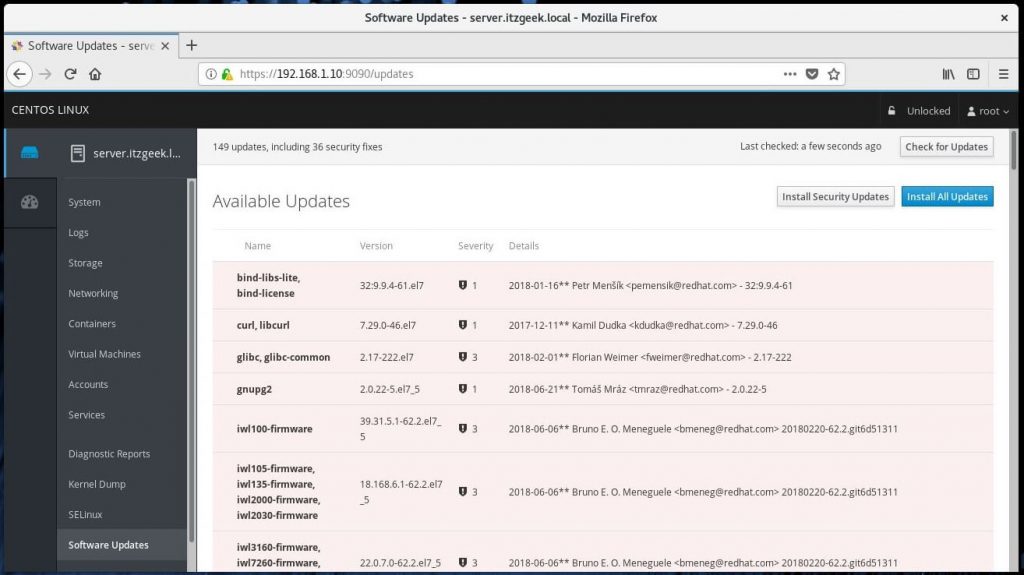

You can seamlessly update the system packages using Software Updates.
![Install Cockpit on CentOS 7 - Handle System Updates with Cockpit](https://linuxpunx.com/wp-content/uploads/2021/04/how-to-install-cockpit-on-centos-7-rhel-7-fedora-28-8.jpg)

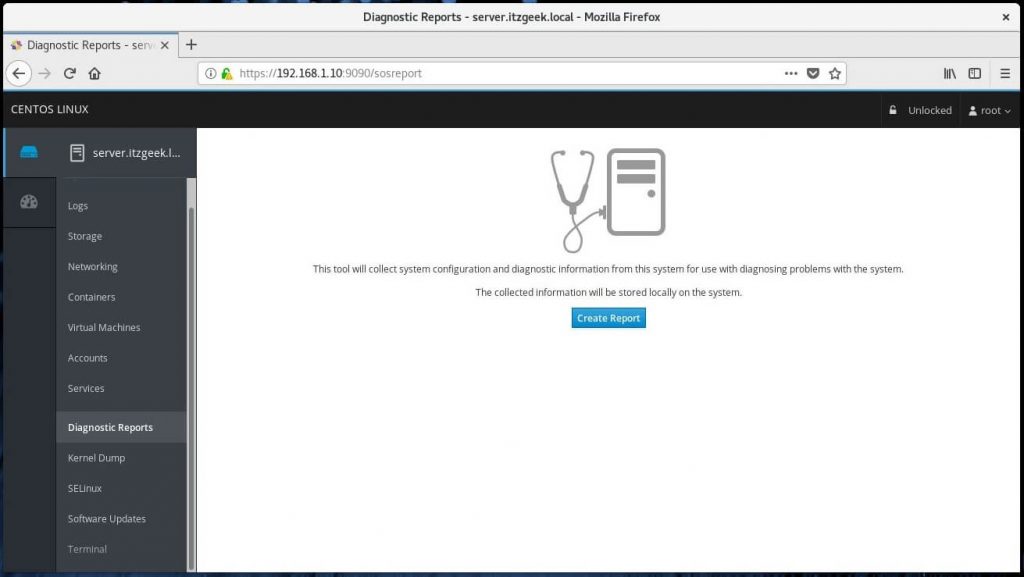

Generate sosreport and share with support team by going to Diagnostic Reports using Cockpit.
![Install Cockpit on CentOS 7 - Generate System Diagnostic Report with Cockpit](https://linuxpunx.com/wp-content/uploads/2021/04/how-to-install-cockpit-on-centos-7-rhel-7-fedora-28-9.jpg)

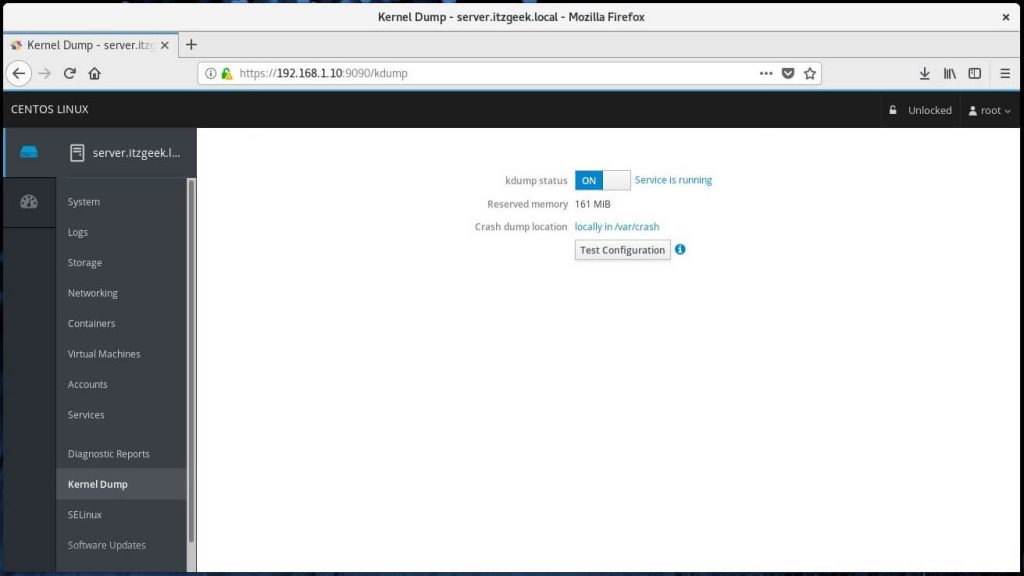

Manage kernel crash dump by going to Kernel Dump.
![Install Cockpit on CentOS 7 - Manage Kernel Crash Dump Configurations](https://linuxpunx.com/wp-content/uploads/2021/04/how-to-install-cockpit-on-centos-7-rhel-7-fedora-28-10.jpg)
Manage Multiple Servers with Cockpit

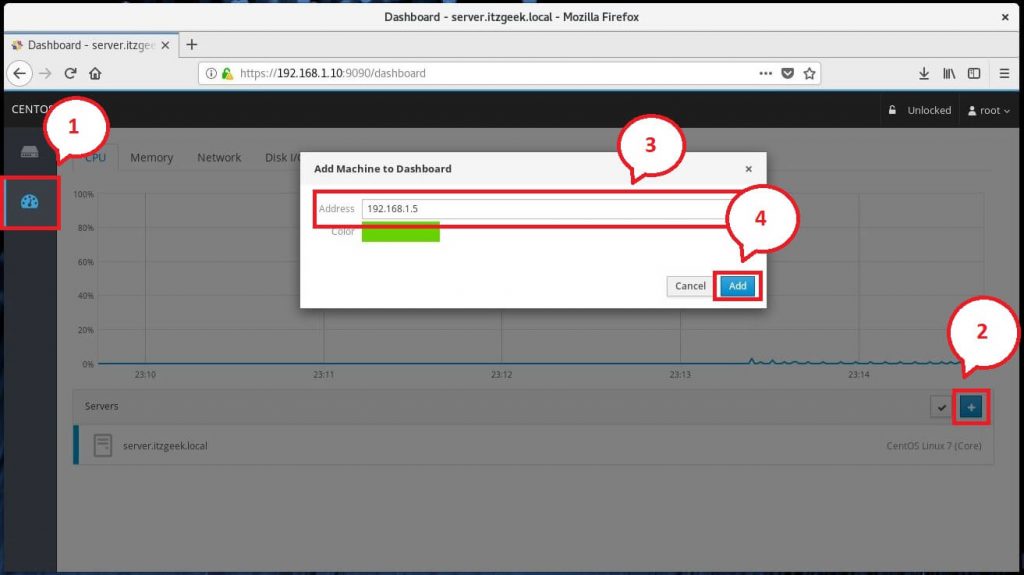

To manage multiple servers with Cockpit, click on Dashboard and then click on Plus sign icon and add them one by one.
![Install Cockpit on CentOS 7 - Add Machines to Cockpit](https://linuxpunx.com/wp-content/uploads/2021/04/how-to-install-cockpit-on-centos-7-rhel-7-fedora-28-11.jpg)

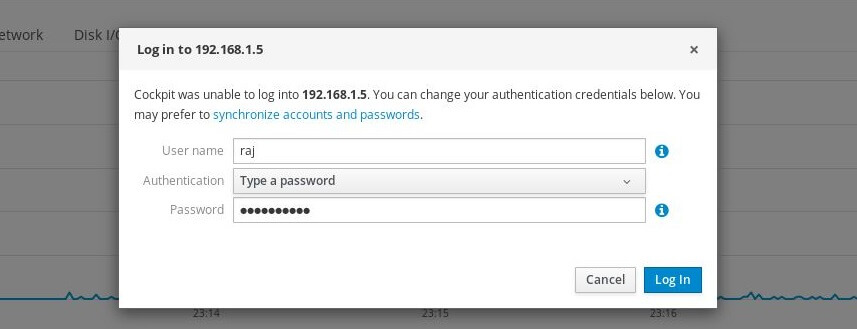

If the user on the remote Cockpit machine is different from the currently logged in user, then you would need to re-authenticate with the username and password.
![Install Cockpit on CentOS 7 - Password Authentication for remote machine](https://linuxpunx.com/wp-content/uploads/2021/04/how-to-install-cockpit-on-centos-7-rhel-7-fedora-28-12.jpg)

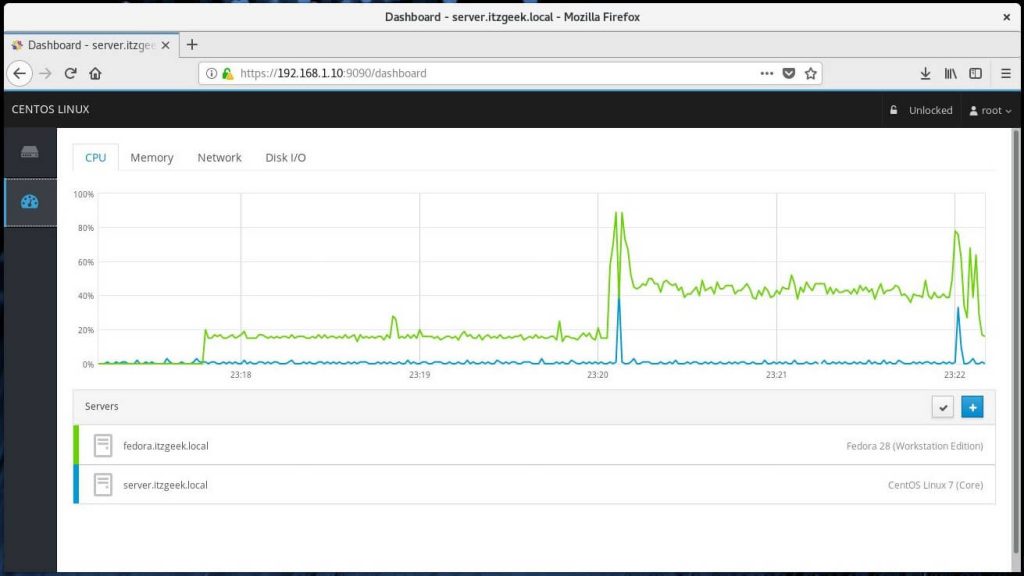

List of machines connected to Cockpit:
![Install Cockpit on CentOS 7 - List of Machines](https://linuxpunx.com/wp-content/uploads/2021/04/how-to-install-cockpit-on-centos-7-rhel-7-fedora-28-13.jpg)

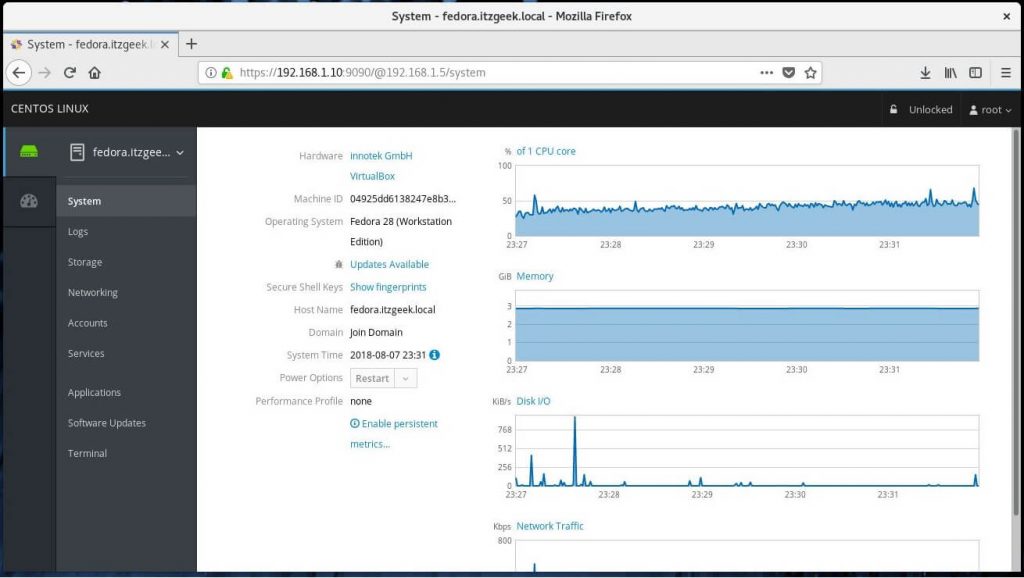

Overview of the remote system:
![Install Cockpit on CentOS 7 - Detailed Overview of Remote Machine](https://linuxpunx.com/wp-content/uploads/2021/04/how-to-install-cockpit-on-centos-7-rhel-7-fedora-28-14.jpg)
That’s All.
